Free Practice Questions for HP HPE0-S59 Exam

In an HPE Synergy environment, a logical enclosure represents a management domain that groups multiple Synergy frames and their associated compute, storage, and fabric resources. Given the setup with 3 HPE Synergy 12000 Frames and the specified components, the customer must create at least two logical enclosures to effectively manage all compute nodes and resources across multiple frames. This ensures proper resource allocation, management, and redundancy.

An HPE OneView support dump includes various diagnostic information, and by default, it contains a logical enclosure support dump. This comprehensive dump helps in troubleshooting by providing detailed logs and configuration data from the appliance and the logical enclosures it manages, enabling effective diagnosis of issues within the managed environment.

In HPE Synergy configurations, compute nodes must have a second CPU installed to access the second fabric. This requirement is due to the architecture of the Synergy compute nodes, where the second CPU is necessary to enable the additional PCIe lanes required for connectivity to the second fabric.

The issue of seeing multiple instances of an FC boot volume in Disk Management, with one online and three offline, is typically caused by the lack of Multi-Path I/O (MPIO) configuration. Installing and configuring MPIO on the Windows system will enable the operating system to recognize multiple paths to the same storage volume and manage them correctly, presenting only one online instance of the volume.

Login Redistribution is a specific feature within HPE Virtual Connect Fibre Channel (FC) modules (including the 16Gb and 32Gb variants) that manages how server NPIV (N_Port ID Virtualization) logins are distributed across physical uplink ports connected to a SAN fabric.

The Purpose of Redistribution: When a Virtual Connect FC module initiates connections to a SAN, it distributes the virtual HBA logins from the compute modules across the available physical uplinks. If an uplink fails, the logins associated with that port are automatically migrated to the remaining active uplinks. However, when the failed uplink is restored (brought back online), the logins do not automatically move back to the restored port by default to avoid a momentary disruption caused by a logout/re-login sequence.

Balancing Logins: Over time, or after multiple link failures and recoveries, the distribution of logins across the physical ports can become uneven (e.g., one port carrying 10 logins while another carries only 2). Login Redistribution (Option D) is the mechanism used to re-balance these logins across all available healthy uplinks to ensure optimal performance and bandwidth utilization.

Modes of Operation: * Manual: The administrator triggers the redistribution via HPE OneView.

Automatic: The system automatically re-balances the logins when a new link is added or a failed link is restored, typically after a configurable delay.

Why other options are incorrect:

Option A: This feature works regardless of whether the storage is a 3par, Primera, or Alletra, and whether it is connected directly (Flat SAN) or through a standard FC fabric.

Option B: Login redistribution is a standard feature of the Virtual Connect firmware and HPE OneView; it does not require additional per-port or feature-specific licenses.

Option C: While it is supported on the SE 32Gb FC modules, it was also supported on the older 16Gb FC modules for Synergy and even the legacy Virtual Connect modules for c-Class.

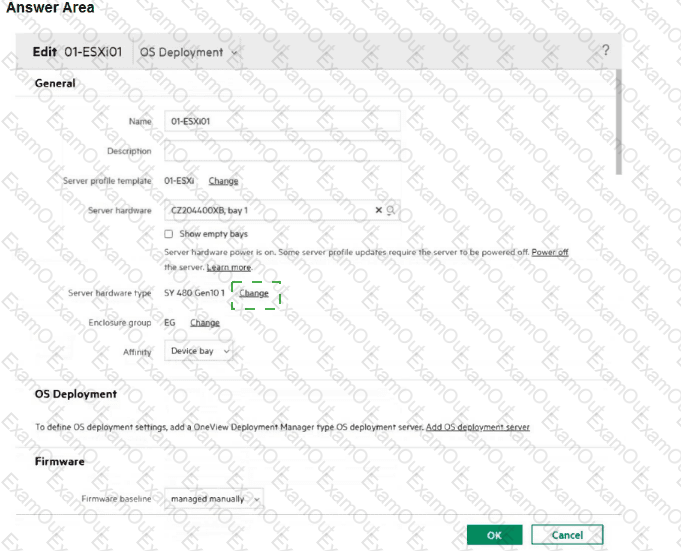

Click the Change link located next to Server hardware type .

In HPE OneView, a Server Profile is a logical software-defined representation of a server. A key component of its definition is the Server Hardware Type , which acts as a " schema " describing the physical characteristics of the server (such as the number of processors, drive bays, and mezzanine slots).

Hardware Incompatibility: Because the HPE Synergy 480 and Synergy 660 have different physical architectures, they are classified as different Server Hardware Types. You cannot simply assign a profile created for a 480 directly to a 660 blade; the " Server hardware " dropdown would show the 660 blades as incompatible.

The Migration Path: To perform this migration, the profile must first be unassigned from its current physical hardware. Once unassigned, clicking the Change link next to Server hardware type allows the administrator to select the hardware type that matches the Synergy 660.

Identity Preservation: By changing the hardware type within the existing profile rather than creating a new one, the profile retains its Virtual Identities (WWNs, MAC addresses, and Serial Number). This is critical in environments with manual storage zoning or strict network security, as it ensures the " new " physical server is recognized by the fabric as the " old " logical server.

Validation: After changing the type, HPE OneView performs a validation check to ensure the existing settings (like Mezzanine card mappings) are compatible with the new hardware layout before allowing the profile to be assigned to the new 660 compute module.
