Free Practice Questions for Fortinet FCP_WCS_AD-7.4 Exam

AWS GuardDuty Integration:

AWS GuardDuty is a threat detection service that continuously monitors for malicious activity and unauthorized behavior to protect AWS accounts and workloads. It can generate findings that can be used to create or update firewall rules automatically in FortiGate to enhance security and provide timely protection (Option D).

Integration with FortiGate:

GuardDuty findings can be integrated with FortiGate using automation tools and scripts to create firewall rules dynamically, thereby accelerating the time-to-protection against emerging threats.

Other Options Analysis:

Option A (AWS Firewall Manager) is more suited for managing rules across multiple accounts but not for dynamic threat response.

Option B (AWS Network ACL) provides stateless filtering but does not offer automated rule creation.

Option C (SDN Connector for AWS) helps in integrating SDN capabilities but is not specifically focused on threat-based rule automation.

References:

AWS GuardDuty:AWS GuardDuty

FortiGate Integration: Fortinet Integration

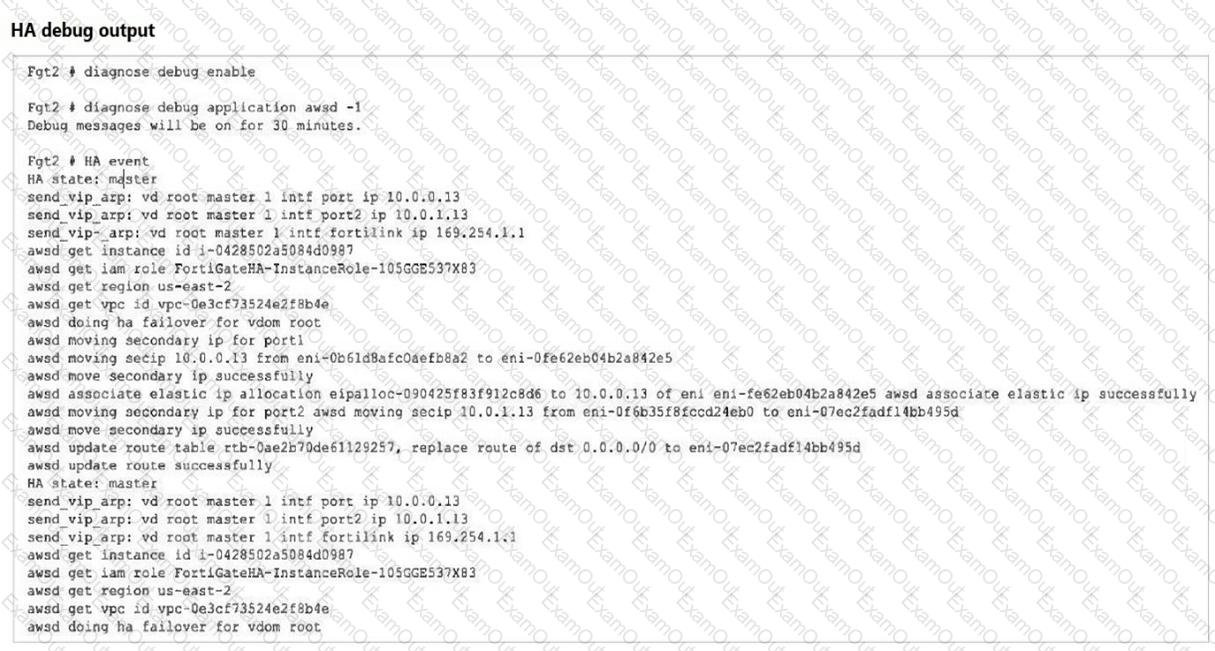

HA Event and Failover:

The debug output indicates that a failover event occurred and the secondary instance (Fgt2) is now taking over as the master.

Elastic IP Association:

The debug output shows the process of moving the Elastic IP (eipalloc-090425f83f912c8d6) to the new master instance. This involves associating the Elastic IP with the appropriate network interface (eni) of the new master.

Specific IP Address Association:

The Elastic IP is specifically associated with port1 of Fgt2. The message "associate elastic ip eipalloc-090425f83f912c8d6 to 10.0.0.13 of eni eni-0f6b35f8fccd24eb0" indicates that the Elastic IP is now linked to the primary IP address (10.0.0.13) on port1 of the new master.

Other Options Analysis:

Option A is incorrect because the routing table update details are not explicitly stated.

Option C is incorrect because the IP address association mentioned relates to an Elastic IP, not eni-0b61d8afc0aefb8a2.

Option D is incorrect because it specifically mentions port2 for the Elastic IP association, which is not indicated in the debug output.

References:

FortiGate HA Configuration Guide: FortiGate HA

AWS Elastic IP Documentation:Elastic IP

Zero-day Protection:

FortiWeb VM provides robust protection against zero-day vulnerabilities through advanced security mechanisms and frequent updates from FortiGuard. This ensures that web applications are protected from newly discovered threats that have not yet been patched or recognized by other security systems (Option C).

Advanced WAF Functionality:

FortiWeb VM offers a range of advanced WAF features that go beyond what is typically provided by managed rules for AWS WAF. These include more detailed traffic analysis, customizable rules, machine learning-based threat detection, and comprehensive logging and reporting capabilities (Option D).

Other Options Analysis:

Option A is more relevant to a consumption-based pricing model but not a specific benefit unique to FortiWeb VM over AWS WAF.

Option B is incorrect because both FortiWeb VM and Fortinet Managed Rules for AWS WAF are powered by FortiGuard updates.

References:

FortiWeb Overview: FortiWeb VM

AWS WAF and Fortinet Managed Rules:AWS WAF

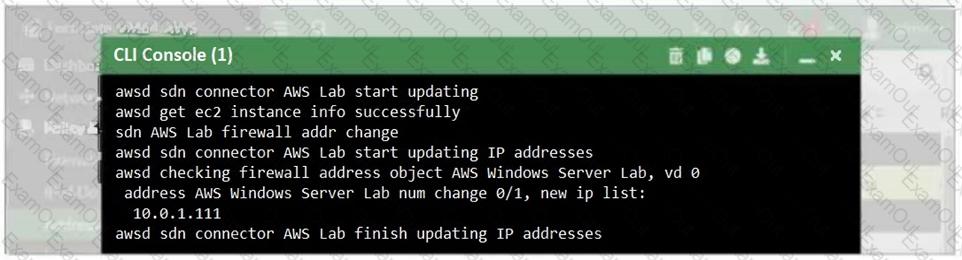

Dynamic Address Object Update:

The debug output shows that the IP address of the AWS Windows Server Lab has been updated automatically, indicating that the dynamic address object feature is working as intended. This allows FortiGate to adapt to changes in the IP addresses of AWS instances dynamically (Option A).

SDN Connector Configuration:

The messages in the debug output confirm that the SDN connector is able to retrieve instance information and update the firewall address objects successfully. This implies that the SDN connector is correctly configured and has the necessary permissions (Option C).

Manual Change and Permissions:

Option B is incorrect because while the address object could theoretically be changed manually, this is not inferred from the debug output.

Option D is incorrect because the debug output does not indicate that the AWS user account must have full administrative rights. The required permissions are typically more scoped to specific actions related to SDN.

References:

FortiGate AWS Integration Guide: FortiGate on AWS

AWS IAM Policies for SDN:AWS IAM Policies

VPC-Scoped Protection:

When deploying a FortiWeb VM inside a Virtual Private Cloud (VPC), the security and protection it offers are limited to the applications and traffic that pass through that specific VPC. This means that any applications outside this VPC will not benefit from the protection of FortiWeb VM (Option D).

Comparison with FortiWeb Cloud:

FortiWeb Cloud, being a cloud-native WAF-as-a-Service, can protect applications regardless of their VPC location, offering broader and more flexible protection capabilities.

Other Options Analysis:

Option A is incorrect because both FortiWeb VM and FortiWeb Cloud protect against OWASP Top 10 threats.

Option B is incorrect because FortiWeb VM does support zero-day protection.

Option C is incorrect as the performance of FortiWeb VM in applying advanced WAF protection is not inherently slower compared to FortiWeb Cloud.

References:

FortiWeb Overview: FortiWeb

Remote Access to FortiGate VM:

The FortiCloud portal allows users to remotely access their FortiGate VM instances. This is particularly useful for managing and configuring instances without needing direct network access (Option A).

FortiFlex Portal Access:

The FortiFlex portal is a feature that becomes available only after purchasing a FortiFlex license and registering it on FortiCare. This portal provides additional functionalities and services related to FortiFlex (Option C).

IAM Permissions:

Option B is incorrect because the Identity and Access Management (IAM) permissions in the FortiCloud portal do not require writing JSON scripts; they can be managed through the portal interface.

Subscription to Cloud Services:

Option D is incorrect because FortiCloud provides access to services beyond those subscribed through the AWS marketplace, including services directly offered by Fortinet.

References:

FortiCloud Documentation: FortiCloud

FortiFlex Portal: FortiFlex Licensing

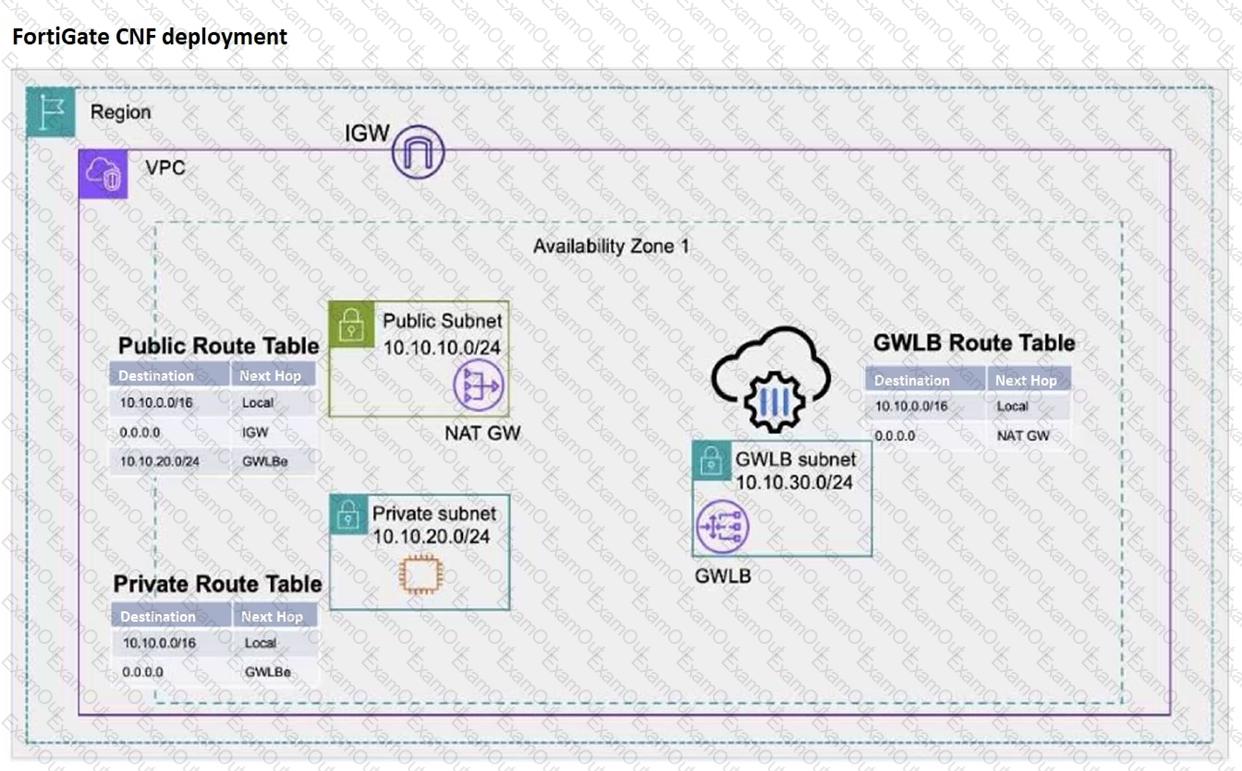

Understanding the Architecture:

The architecture includes an EC2 instance in a private subnet, a Gateway Load Balancer Endpoint (GWLBe), a NAT Gateway (NAT GW), and an Internet Gateway (IGW).

Route Tables and Routing:

The private route table for the subnet containing the EC2 instance has a route pointing to the GWLBe for internet-bound traffic.

The public route table for the subnet containing the NAT Gateway has routes to the IGW.

Traffic Flow Analysis:

Traffic initiated from the EC2 instance destined for the internet will first be routed to the GWLBe as per the private route table.

The GWLBe will forward the traffic to the NAT Gateway.

The NAT Gateway will then route the traffic to the IGW, which finally sends the traffic to the internet.

Comparison with Other Options:

Option A suggests direct routing to the NAT GW from the EC2 instance, which is incorrect.

Option B incorrectly states there is no route to the internet in the private route table.

Option D suggests direct routing from GWLBe to the internet, which is not the case.

References:

AWS Documentation on Route Tables:AWS Route Tables

Gateway Load Balancer Overview:AWS Gateway Load Balancer

Understanding Fortinet HA CloudFormation Template:

The Fortinet High Availability (HA) CloudFormation template is used to automate the deployment and configuration of FortiGate instances in AWS.

Staging and Bootstrapping FortiGate:

Staging involves preparing the necessary configuration files and resources needed for deployment.

Bootstrapping is the process of automatically configuring FortiGate instances upon deployment.

S3 Bucket Requirement:

The configuration files required for staging and bootstrapping are typically stored in an S3 bucket.

Since the deployment is in the Ohio (US-East-2) region, it is recommended to host the S3 bucket in the same region to minimize latency and ensure regional compliance.

Comparison with Other Options:

Option A is incorrect because while an S3 bucket is required, it should be in the same region (US-East-2).

Option B is incorrect as the template does not automatically create the S3 bucket.

Option D is incorrect as DynamoDB is not used for staging and bootstrapping in this scenario.

References:

Fortinet Documentation: FortiGate on AWS

AWS S3 Documentation:AWS S3

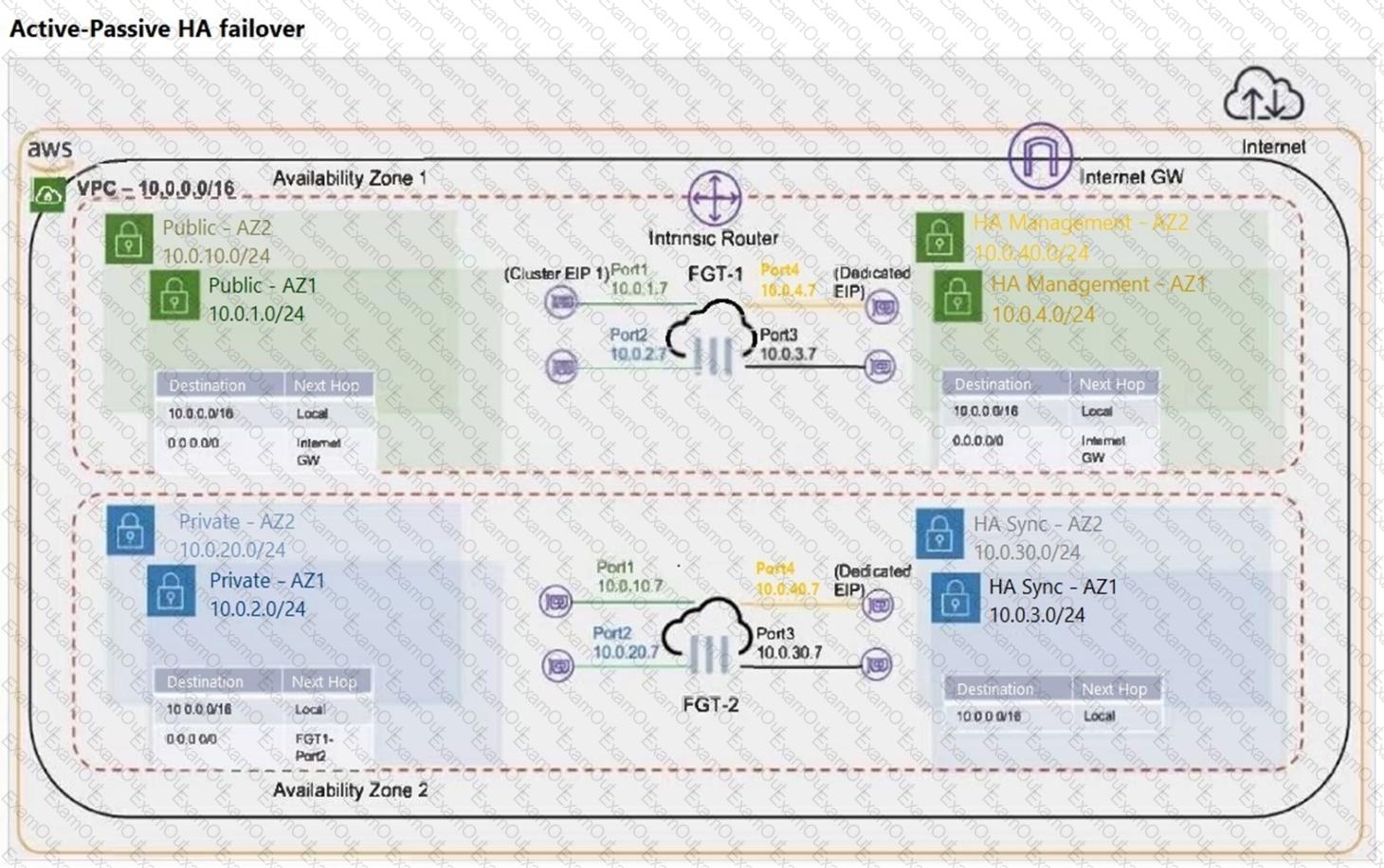

Cluster Elastic IP Address (EIP) Movement:

During a failover in an active-passive (A-P) cluster, the Elastic IP (EIP) associated with the active FortiGate instance (FGT-1) needs to be moved to the passive instance (FGT-2), which becomes the new active instance. This ensures that the traffic directed to the EIP is now handled by FGT-2 (Option A).

Secondary IP Address Movement:

The secondary IP address on Port2 of the current active instance (FGT-1) is moved to the same port on the new active instance (FGT-2). This step is crucial to ensure seamless network traffic redirection and connectivity for the services relying on that IP address (Option B).

Other Options Analysis:

Option C is incorrect because the static route modification mentioned is not directly related to the failover process described.

Option D is incorrect because no additional route needs to be added to the HA Sync AZ2 subnet route table to forward traffic to the Internet Gateway during a failover.

References:

FortiGate HA Configuration Guide: FortiGate HA

AWS Elastic IP Documentation:Elastic IP
