Free Practice Questions for Citrix 1Y0-204 Exam

The redirectURL parameter of the set cs vserver command specifies the URL where the user requests are redirected if the status of the content switching virtual server is DOWN1. This parameter is used for configuring backup servers or displaying maintenance messages1.

 If client drives are not mapped in a HDX session despite the ‘Auto connect client drives’ setting being configured, it could be due to the absence of loopback processing. Enabling loopback processing in the Group Policy Object (GPO) allows user-specific settings to be applied regardless of where the user object is located in Active Directory, ensuring that the policy is effectively applied to the published desktops.

According to Citrix documentation, to make a configuration change for a StoreFront server group, the change should be made on one StoreFront server in the group, and then the Propagate Changes feature should be used to synchronize the change across the group1

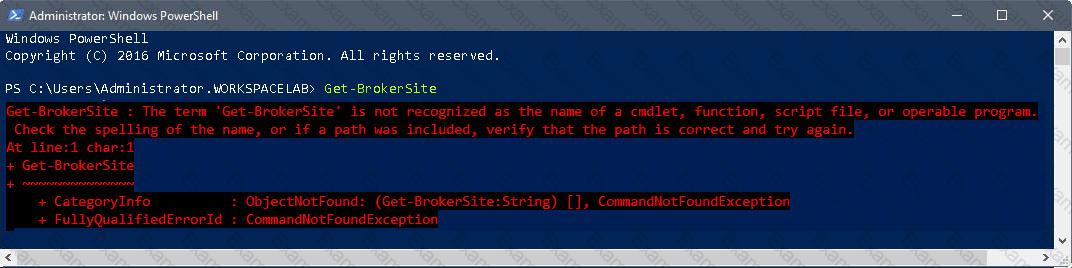

The administrator received this error because they did not run the Add-PSSnapin Citrix* command before running the Get-BrokerSite PowerShell command. This is required to load the Citrix PowerShell snap-ins.

According to the Proxy modes | Citrix Secure Web Gateway 12.1 - NetScaler document, to configure a Content Switching virtual server for implementing the Citrix Secure Web Gateway in the transparent proxy mode, the command should be:

add cs vserver < name > PROXY < ipaddress > < port >

The document also provides an example of the command:

add cs vserver swgVS PROXY 192.168.10.1 80

Therefore, the correct answer is C, which matches the format and the example given in the document. The other options are incorrect because they either use asterisks (*) instead of an IP address, or they do not specify a port number.

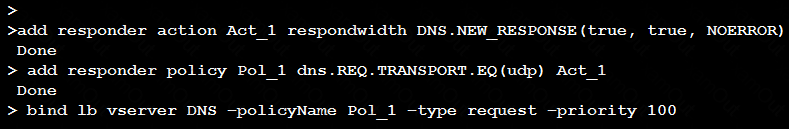

The commands in the screenshot create a responder action and policy that modify the DNS response from the Citrix ADC to the client. The responder action uses the DNS.NEW_RESPONSE function, which creates a new DNS response with the specified parameters. The first parameter is true, which means the response will have the TC (truncated) bit set. The second parameter is true, which means the response will have the AA (authoritative answer) bit set. The third parameter is NOERROR, which means the response will have the rcode (response code) set to NOERROR. The responder policy matches the DNS requests that use UDP as the transport protocol and applies the responder action to them. Therefore, the effect of this configuration is to create a DNS response with TC bit set and rcode as NOERROR for UDP requests. This can be used to prevent DNS amplification attacks by limiting the size of the DNS response.

 According to the Reference Architecture: Image Management, Machine Creation Services (MCS) is a disk-based provisioning approach that works with major hypervisors and leading cloud platforms. The clones include a differencing disk and an identity disk linked from a base disk. MCS configures, starts, stops, and deletes virtual machines using the hypervisor APIs. When a Random/Non-Persistent desktop machine is restarted, the differencing disk will be updated from the base image, discarding any changes made by the user. This ensures that the desktop machine is always in a clean state and consistent with the master image.

According to the Citrix documentation1, when connection proxy is used as the site persistence method, the Subnet IP (SNIP) address of the appliance is used to source the traffic when the connection is proxied. This ensures that the response from the server goes back to the same appliance that proxied the request.

1: Connection Proxy

According to the Create machine catalogs document from Citrix Virtual Apps and Desktops 7 2308, MCS adds the machines to Active Directory, which creates unique identities. MCS creates the number of VMs specified in the wizard, with two disks defined for each VM. In addition to the two disks per VM, a master is also stored in the same storage location. The identity disk is one of the two disks per VM, and it is used to store the Active Directory identity and other unique information for each VM. The identity disk is 16 MB in size and is created for each VM regardless of the disk type selected for the catalog.

Without a bound SSL certificate, the SSL virtual server cannot establish secure connections and will be in a DOWN state.

According to the Citrix documentation, “To enable SSL offloading for a virtual server, you must bind an SSL certificate to the virtual server.”

The image you sent shows the configuration commands for setting up an SSL virtual server and services. However, there is no command to bind an SSL certificate to the virtual server.

Therefore, the correct answer is D. The SSL Certificate is NOT bound to the virtual server.

https://docs.citrix.com/en-us/citrix-adc/13/ssl/ssl-offload-howto.html
