You are planning an Active-Active-Active VRRP-A three-device deployment that, upon failover of any device, distributes the load from a single device to both standby devices simultaneously. How many VRIDs are required?

A.

2

B.

VRID Default is enough

C.

6

D.

5

E.

3

F.

4

What is the purpose of a VRRP-A floating-IP address?

A.

To serve as a tie-breaker when selecting a VRRP-A owner.

B.

To provide a single next hop IP address for uplink and downlink devices.

C.

To use as source IP address for VRRP-A hellos.

D.

To provide a single IP to manage all VRRP-A devices in the set.

What do we know about the state of the system from the CLI prompt? (Choose two.)

A1-vMaster[1/1][Helium2]#

A.

There is only 1 member in this A10 Virtual Chassis.

B.

There are at least 2 private partitions configured.

C.

aVCS has been configured, and this host is part of aVCS set 1.

D.

aVCS has been configured, and this host is part of aVCS set 1/1.

E.

Application Delivery Partitions have been configured.

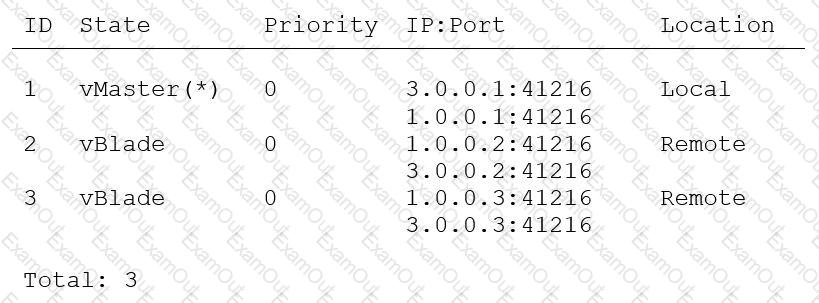

In the following configuration:

Where network 3.0.0.x on each device is on a VE interface dedicated to aVCS traffic, what must you do to ensure that command “device-context x” always succeeds?

A.

Verify the interface is untagged on each device.

B.

Enable management service ssh on that interface for each device.

C.

Configure vcs floating-ip on network 3.0.0.0 /24.

D.

Apply acl ”permit 3.0.0.0 /24” on that interface for each device.

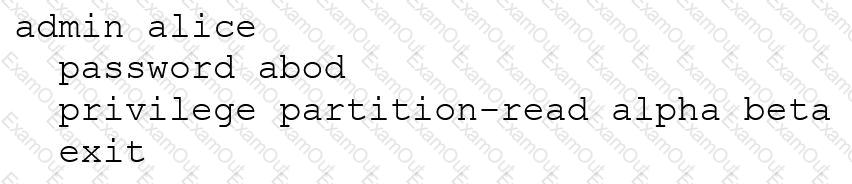

Given the following configuration, which statement describes Alice’s partition access rights?

A.

Alice can access the partitions alpha and beta partition, but not the shared partition.

B.

Alice can access the partitions alpha, beta, as well as the shared partition.

C.

Alice can access either the alpha or beta partitions, but cannot access them both.

D.

Alice can access the shared partition provided she is not currently accessing the alpha or beta partition.

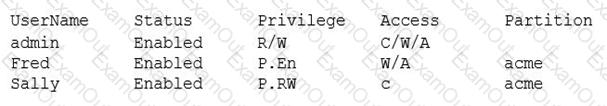

The “show admin” displays the following output. Select the correct statements concerning admins on this device. (Choose two.)

A.

Sally is a read write administrator on the Acme partition.

B.

Fred is a read write administrator on the Acme partition.

C.

Fred can only log in with the web or api client.

D.

User admin has no access to the acme partition.

E.

Fred can run aXAPI scripts against the acme partition using his login information.

F.

Sally can only log in with the web client.

G.

Sally is a read write administrator on the shared partition.

Which commands display the ACOS device serial number? (Choose two.)

A.

show system

B.

show hardware

C.

show environment

D.

show serial

E.

show version

Device 1 is the vMaster in a virtual chassis. Select the command set that adds an IP address to VE interface 200 on device 3?

A.

interface ve 200 device 3 ip address 198.162.4.1 /24

B.

interface device-context 3 interface ve 200 ip address 198.162.4.1 /24

C.

interface ve 3/200 ip address 198.162.4.1 /24

D.

vcs device-context device 3 interface ve 200 ip address 198.162.4.1 /24

Which statement describes the following configuration?

ACOS(config)# smtp 10.10.10.5

ACOS(config)# logging email emergency

ACOS(config)# logging email-address syslog@a10networks.com

A.

Send logs related to 10.10.10.5 to email address syslog@a10networks.com.

B.

The ACOS device is configured to send log messages by email.

C.

The ACOS administrator’s email is syslog@a10networks.com where SNMP traps will be sent.

D.

The ACOS device is configured to act as SMTP server to forward logging messages for other devices.
